Overview

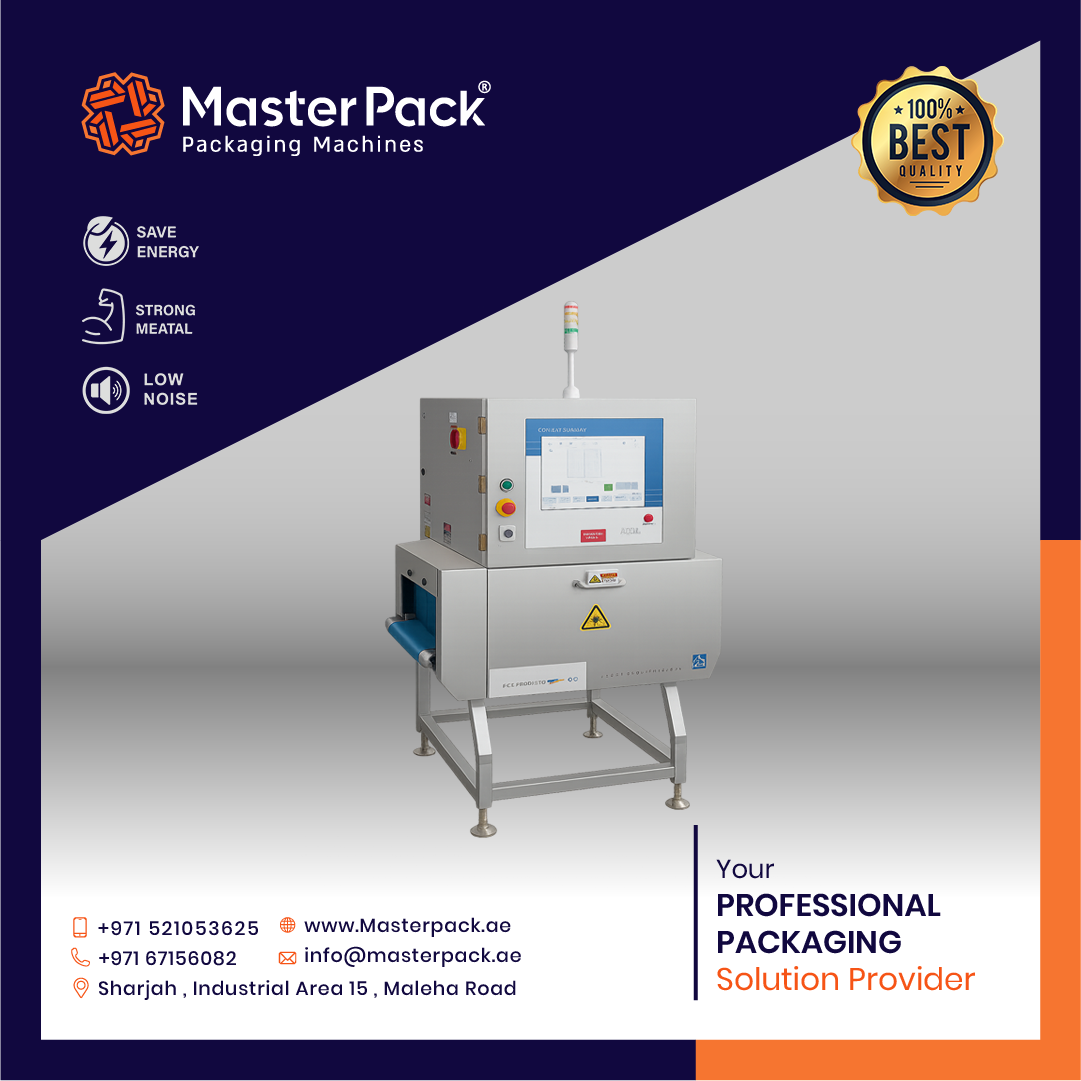

The X-ray Inspection System in Dubai, UAE from Masterpack is engineered to ensure maximum product safety and quality by detecting contaminants such as stainless steel, glass, ceramics, and other foreign materials in real time. Designed for integration into high-demand production lines, it delivers high accuracy, reliability, and compliance for food, pharmaceutical, and industrial manufacturers across the UAE and GCC.
Key Features
Advanced Detection: Identifies stainless steel (0.3 mm), wires, glass & ceramic particles.
High Accuracy: Ensures consistent quality control with minimal false rejects.
Adjustable Speed: Conveyor operates from 5–60 m/min.
Durable Build: SUS304 stainless steel with mirror polish finish.
Safe & Reliable: X-ray leakage <1 μSv/h with soft curtain protection.
User-Friendly: Windows-based operating system with clear interface.
Compliance Ready: IP54 design (IP65 optional), HACCP & international safety standards.
Flexible Reject Mode: Alarm, stop belt, or optional reject device.
Contact Masterpack UAE today to learn more about the X-ray Inspection System and explore how our inspection technology can secure your production line.
Details
| X-ray Tube | Max 80 kV, 150 W |
|---|---|
| Inspection Size | Width: 240 mm, Height: 110 mm |
| Detection Sensitivity | SS ball 0.3 mm, Glass/Ceramic 1.0 mm |
| Conveyor Speed | 5–60 m/min |
| X-ray Leakage | < 1 μSv/h |
| Protection | Soft curtain, IP54 (IP65 optional) |
| Cooling | Industrial air conditioning |
| Power Supply | 1.5 kW, 220V/380V |
| Material | SUS304 Stainless Steel, Mirror Polished |
