Overview

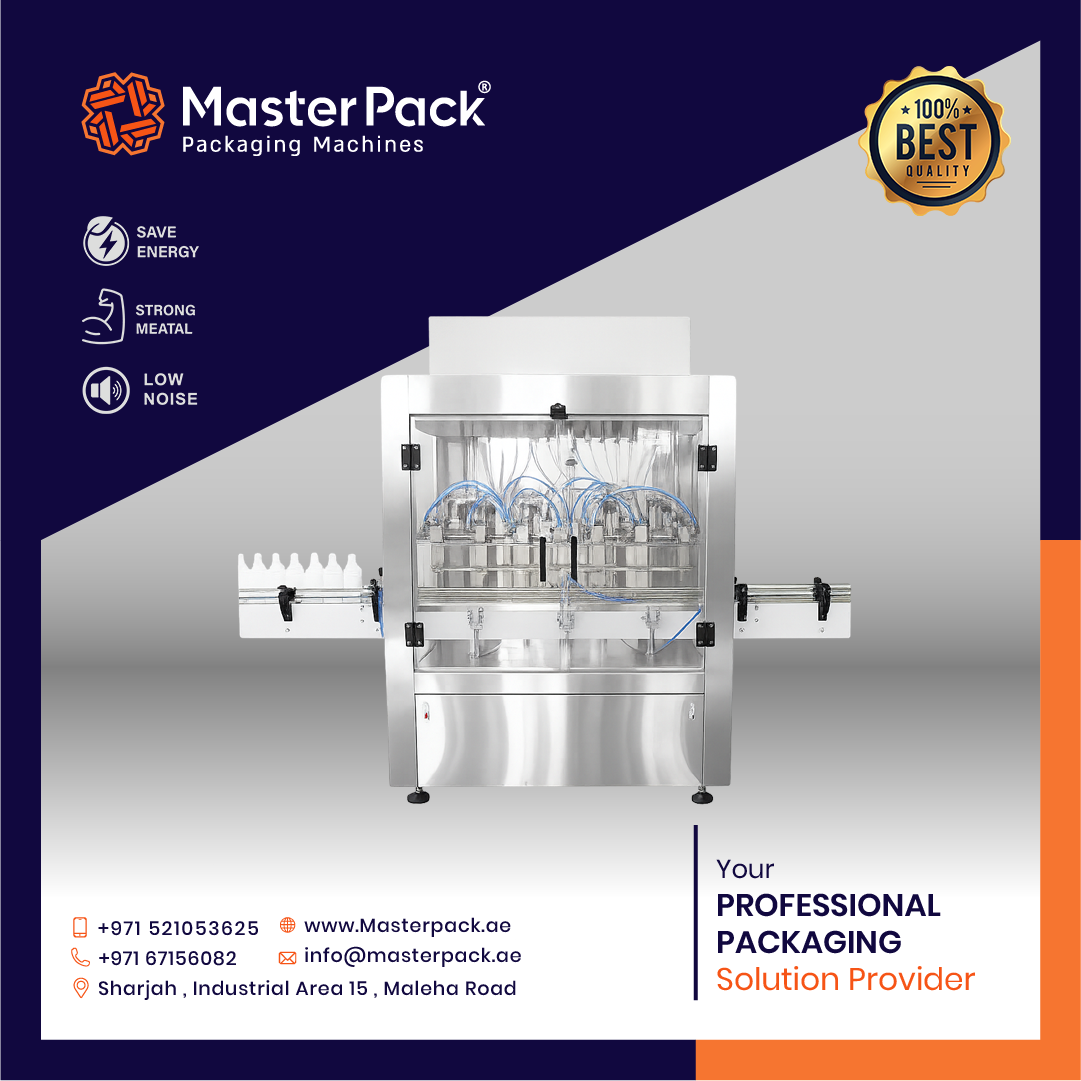

The Automatic Liquid Filling Machine in Dubai, UAE from Masterpack is a servo-driven digital filling system designed for aseptic, viscous, shear-sensitive, and corrosive liquids. Featuring a stainless steel conveyor with pneumatically controlled stoppers, it ensures accurate container positioning and bubble-free, spill-free filling. With PLC controls, adjustable speeds, and a no-bottle-no-fill system, this machine delivers maximum flexibility and efficiency for food, pharmaceutical, cosmetic, and chemical industries.
Features
Precision Filling: Accuracy within Ā±0.8% or 0.5g (whichever is higher).
Servo-Driven Motor: Ensures stable and precise filling operations.
Flexible Volume Control: Independent syringe volume control for customization.
No-Bottle-No-Fill System: Prevents wastage and ensures safety.
Anti-Foaming Nozzles: Reciprocating movement reduces foaming during filling.
Durable Construction: Stainless steel frame with SS316 contact parts.
User-Friendly Controls: PLC + touch screen for adjusting fill volume & speed.
Built-In Holding Tank: 25L tank for continuous supply.
Safety Features: Protection against overcurrent, short circuits & voltage fluctuations.
Applications: Food, beverages, chemicals, cosmetics & pharma liquids.
Contact Masterpack UAE today to learn more about the Automatic Liquid Filling Machine and request tailored solutions for your production line.
š For full specifications and additional technical details, please visit the official product page:
Automatic Liquid Filling Machine ā First Class Packing
Details
| Model | MP-A053MP-A053 |
|---|---|
| Filling Range | 25 ml ā 500 ml (with syringe change parts) |
| Accuracy | Ā±1% per dose |
| Production Output | Up to 80 bottles/min |
| Bottle Diameter | Up to 90 mm |
| Syringe Range | 10ā50 ml, 50ā100 ml, 100ā250 ml, 250ā500 ml |
| Conveyor Height | 800ā850 mm |
| Power Supply | 220V, Single Phase, 50Hz |
| Machine Power | 2.0 HP |
| Dimensions (LĆWĆH) | 1830 Ć 800 Ć 1550 mm |
| Net Weight | 350 kg |
