Overview

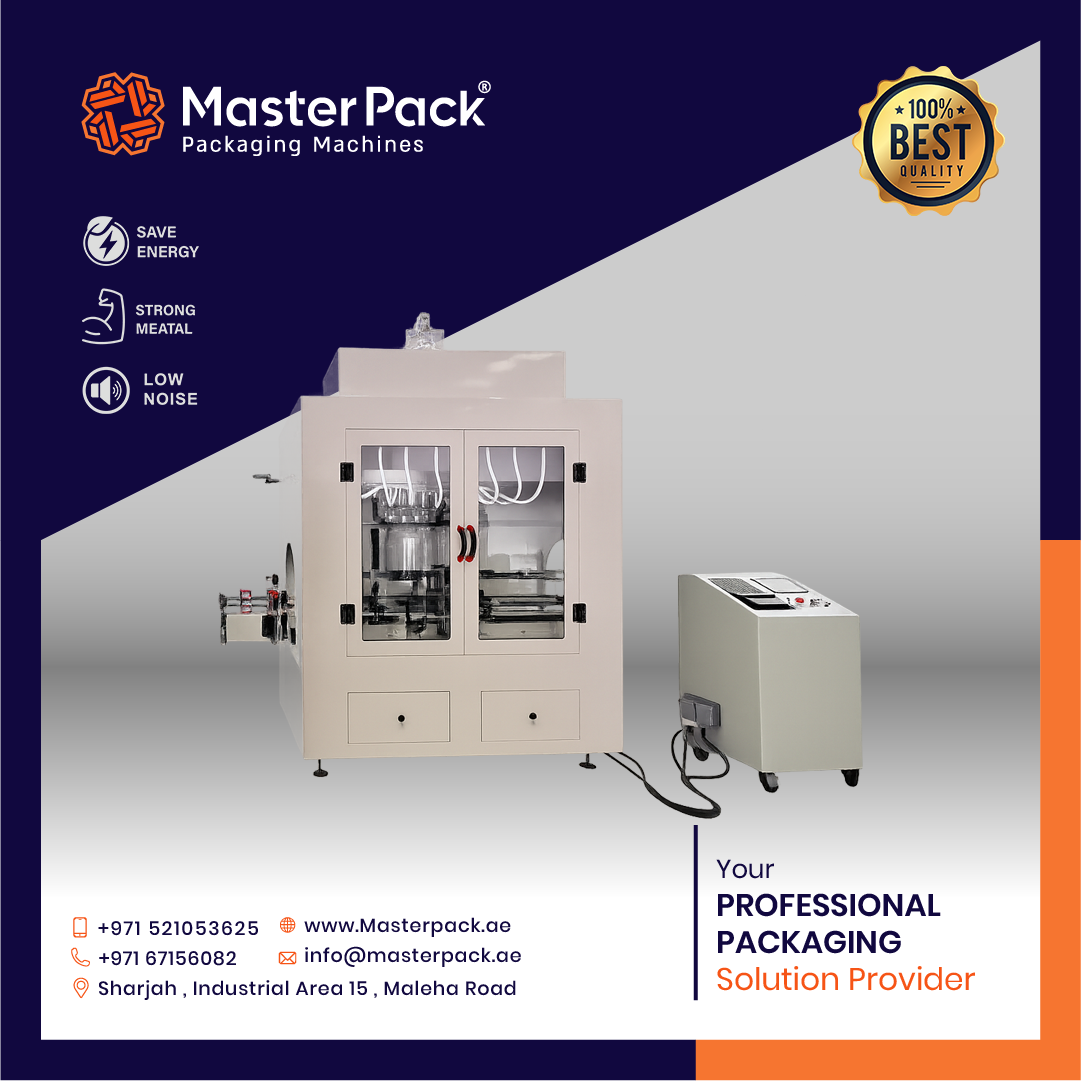

The Automatic Anti Corrosive Liquid Filling Machine in Dubai, UAE from Masterpack is specifically engineered for highly corrosive liquids such as bleach, disinfectants, and toilet cleaning fluids. Built entirely from anti-corrosive PP material (tank, body, screws, and nozzles), it ensures maximum resistance against chemical damage. With PLC microcomputer control, photoelectric sensors, and pneumatic actuation, the machine provides precise, drip-free, and safe filling for aggressive liquid products.
Features
Anti-Corrosive Build: Tank, frame, and nozzles made from PP/PE materials; optional titanium alloy nozzles.
Gravity Filling Type: Designed for non-adhesive but highly corrosive liquids.
High Precision: ±2% for 100–1000 ml; ±1% for 1000–5000 ml.
No-Bottle-No-Fill: Photoelectric detection prevents spillage.
Flexible Capacity: 8, 10, 12, or 16 nozzles depending on production needs.
Safe Operation: Pneumatic actuation with drip-free design.
Compact Layout: Standard dimensions 2000×910×2200 mm; varies with nozzle count.
Applications: Bleach, 84 disinfectant, toilet cleaner, and similar corrosive products.
Contact Masterpack UAE today to learn more about the Automatic Anti Corrosive Liquid Filling Machine and request a tailored solution for corrosive liquid packaging.
🔗 For full specifications and additional technical details, please visit the official product page:
Automatic Anti Corrosive Liquid Filling Machine – First Class Packing
Details
| Model | MP-A054 |
|---|---|
| Filling Volume | 100 – 5000 ml |
| Nozzles Available | 8 / 10 / 12 / 16 |
| Production Output | 1000 – 5000 bottles/hour |
| Accuracy | ±2% (100–1000 ml), ±1% (1000–5000 ml) |
| Voltage | AC220V / 380V ±10% |
| Power Consumption | 1.5 kW |
| Air Pressure | 0.6 – 0.8 Mpa |
| Air Consumption | 0.8 – 1.2 m³/min |
| Dimensions (L×W×H) | 2000 × 910 × 2200 mm |
